Master & Dynamic ME05 (IEM)

Measurements

Master & Dynamic ME05

• 8mm dynamic driver

• Brass housing

• 3-button remote controller

Master & Dynamic ME05 measurements

Check the Measurement Procedures first.

Sample ①

[1. Frequency Response ]

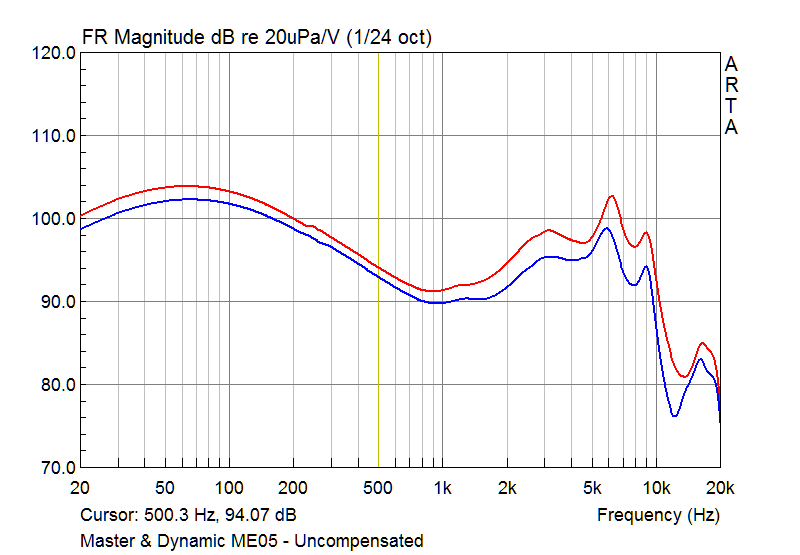

Uncompensated

Diffuse Field Target Compensated

CSD

[2. Square Wave ]

30 Hz

300 Hz

[3. Minimum Phase ]

[4. Harmonic Distortion ]

94 dB SPL at 500 Hz

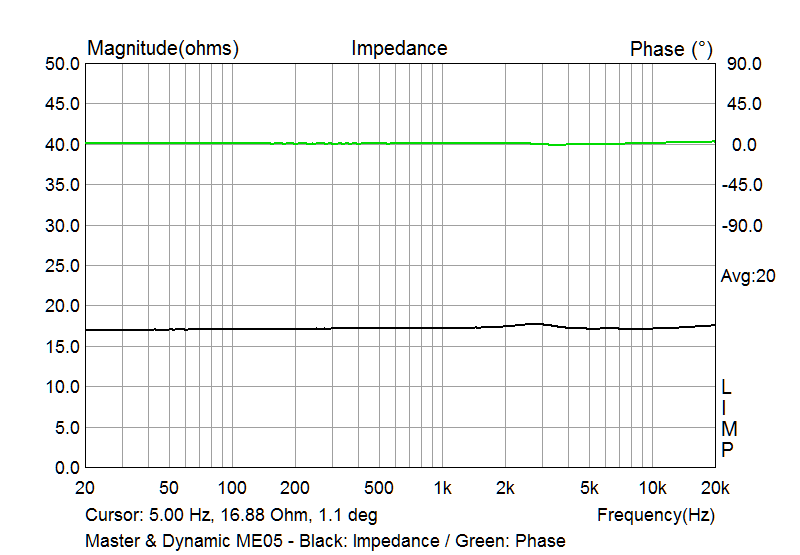

[5. Impedance Magnitude ]

Black: Impedance Magnitude

Green: Electrical Phase

Sample ②

[1. Frequency Response ]

Uncompensated

Diffuse Field Target Compensated

Harman Target Compensated

CSD

[2. Square Wave ]

30 Hz

300 Hz

[3. Minimum Phase ]

[4. Harmonic Distortion ]

94 dB SPL at 500 Hz

[5. Impedance Magnitude ]

Black: Impedance Magnitude

Green: Electrical Phase

[6. Filters ]

Uncompensated

•Black: General (with filter)

•Orange: No filter

Diffuse Field Target Compensated

•Black: General (with filter)

•Orange: No filter

[7. Sample difference ]
