Dynamic Motion DM100E (IEM)

Measurement

Dynamic Motion (다이나믹모션) DM100E

• bdd™ (Balanced Dynamic Driver)

• Single dynamic driver (developed by their own technology)

• Remote controller

• Bundled with D.foam tip

• 39800 KRW [$35 USD] (MSRP)

Dynamic Motion DM100E measurement

Check the Measurement Procedures first.

① DM100E Sample A

[1. Frequency Response ]

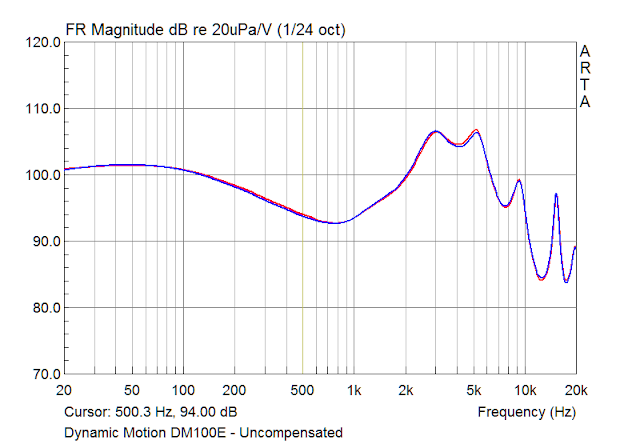

Uncompensated

Diffuse Field Target compensated

Harman Target compensated

CSD

[2. Square Wave ]

30 Hz

300 Hz

 [3. Minimum Phase ]

minimum Phase

[4. Harmonic Distortions ]

94 dB SPL @ 500 Hz

[5. Impedance ]

Black: Impedance Magnitude

Green: Electrical Phase

-----------------------------

② DM100E Sample B

[1. Frequency Response ]

Uncompensated

Diffuse Field Target compensated

Harman Target Compensated

CSD

[2. Square Wave ]

30 Hz

300Hz

[3. Minimum Phase ]

Minimum Phase

[4. Harmonic Distortions ]

94 dB SPL @ 500 Hz

[5. Impedance ]

Black: Impedance Magnitude

Green: Electrical Phase

-----------------------------

③ Sample C (measured by SEEKO)

Uncompensated (overlaid)

Magenta: DM100E measured by SEEKO

Blue, Red: DM100E measured by speakerphone (Sample A)

[6. Insertion Depth ]

Uncompensated

Orange: 4.5 mm

Black: 5.5 (General)

Green: 6.5 mm

Away from the reference plane

[7. Stock Eartips ]

• D.FOAM TIP

Uncompensated

Black: Stock Silicone Eartip

Orange: Stock D.Foam tip
