Audeze EL-8 Open-back - Latest & Older Model (over-ear headphones)

Measurement

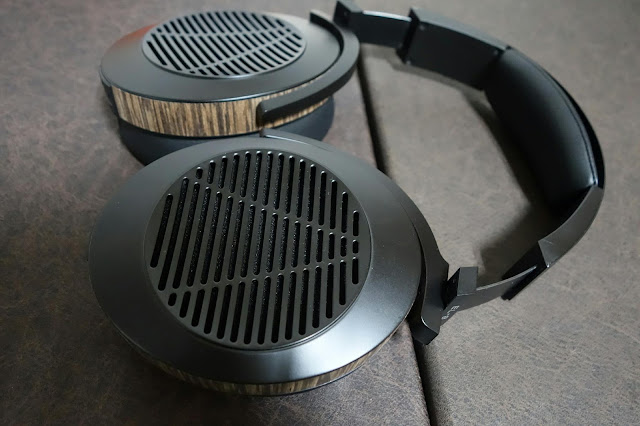

Audeze EL-8 Open-back


Manufactured Date
• Older model: March / 2015
• Latest model: April / 2016



Check the Measurement Procedures first.


[1. Frequency Response ]
Uncompensated


Diffuse Field Target Compensated


Diffuse Field Target Compensated (Right Channel)



[2. Comparison ]

You can check the measurement of a older model: HERE

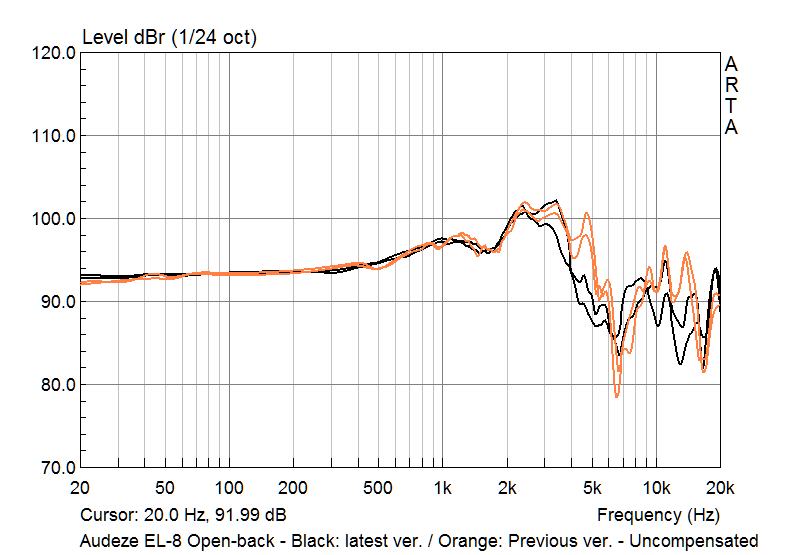

Uncompensated


Difference (Right Channel)

Black: Latest version
Orange(Flat): Older version


Impedance Magnitude

Black: Latest version
Red: Older version





at

3 comments:

  1. UnknownMay 5, 2016 at 6:03 AM

    Interesting, the null seems to be filled up a little bit. But still a chunck of missing treble though.

    ReplyDelete
    Replies
    1. SpeakerphoneMay 5, 2016 at 10:38 AM

      Steep hole at 6kHz is replaced to a wide and large dent at 4~8kHz. It sounds a bit darker(warmer) because of that.

      Delete
