Logitech UE 6000 (NC) (over-ear headphones)

Measurement

Logitech UE6000

• Noise Cancellation

• Detachable cable

• Remote controller for iOS

Logitech UE6000 Measurement

Check the Measurement Procedures first.

① Turned the power off

[1. Frequency Response ]

Uncompensated

Diffuse Field Target Compensated

Olive Welti Target Compensated

Harman Target Compensated

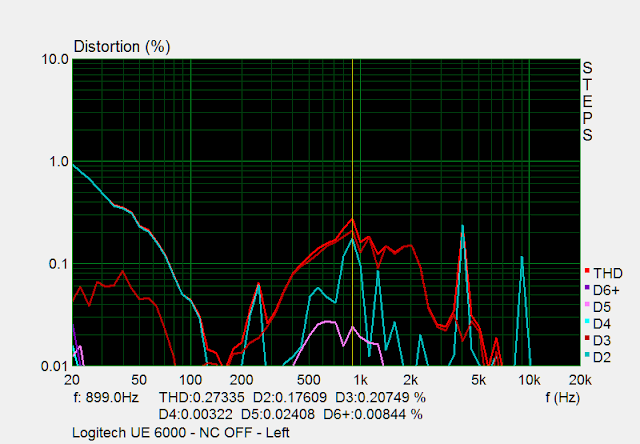

[2. Harmonic Distortions ]

94 dB SPL @500 Hz

[3. Impedance ]

[4. Minimum Phase ]

[5. Sound Leakage ]

Headband of UE6000 is too loose to tighten the ears exactly, so these inevitably have sound leakage through the gap which is situated under the earpads. The amount of leakage would vary from person to person.

Uncompensated

Diffuse Field Target Compensated

• FR with sound leakage

② Turned on the Noise Cancellation

[1. Frequency Response ]

Uncompensated

Uncompensated

Diffuse Field Target Compensated

Olive Welti Target Compensated

Harman Target Compensated

CSD

[2. Square Wave ]

300 Hz

30 Hz

[3 Harmonic Distortions ]

94 dB SPL @ 500 Hz

[4. Sound insulation ]

Headband of UE6000 is too loose to tighten the ears exactly, so these inevitably have sound leakage through the gap which is situated under the earpads. The amount of leakage would vary from person to person.

Uncompensated

Diffuse Field Target Compensated

• FR with Sound Leakage
