AKG Q701 (over-ear headphones)

Measurement

[1. Appearence ]

AKG Q701

• partnership with Quincy Jones

• flat-wire voice-coil technology

• Patented varimotion two layer diaphragm

AKG Q701 Measurement

[2. Frequency Response ]

Check my Measurement Procedures first.

Uncompensated

• 5 plots averaged

Diffuse Field Target Compensated

Olive Welti Target Compensated

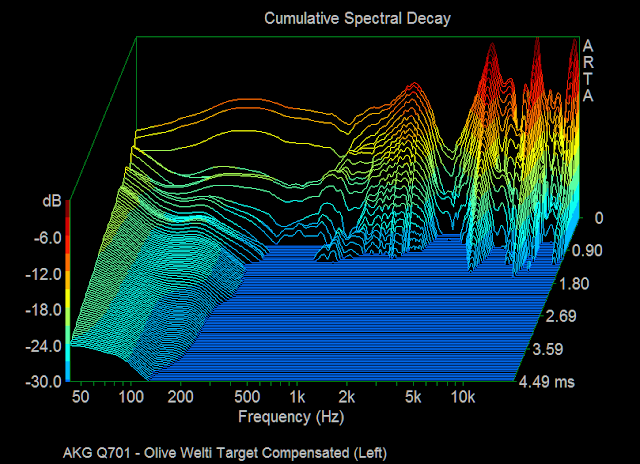

CSD - Olive Welti Target Compensated

[3. Square Wave ]

• 300Hz

• 30Hz

[4. Minimum Phase ]

[5. Harmonic Distortions ]

• 94dB SPL @ 500Hz

[6. Impedance ]

DC Ohm

Black: Impedance Magnitude

Green: Minimum Phase

[7. Detailed FR Plots ]

Uncompensated

Red: up

Magenta: forward

Green: down

Orange: center

Yellow: back

Black: 5 plots averaged
