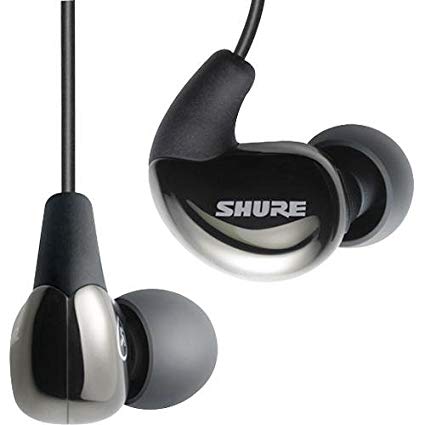

Shure SE530 (IEM)

Shure SE530 (In-Ear Monitor) Measurements

Frequency response

Uncompensated

Diffuse Field Target Compensated

Harman Target Compensated

CSD

Diffuse Field Target Compensated

30 Hz

300 Hz

Minimum Phase

94 dB @ 500 Hz

Impendance

Uncompensated

• Black: 0 ohm

• Pink: 10 ohms

• Orange: 30 ohms

• Green: 90 ohms

resistor added

Difference

• Red(Flat Line): 0 ohm

• Pink: 10 ohms

• Orange: 30 ohms

• Green: 90 ohms

resistor added

Harman Target Compensated

• Black: 0 ohm

• Green: 90 ohms

added resistor

Knowles Acoustic Dampers

Uncompensated

• Black: No damper

• Colors: colors

Diffuse Field Target Compensated

• Black: No damper

• White

• Orange

• Yellow

Difference

• Black: No damper

• White: white damper (flat / reference)

Harman Target Compensated

• Black: No damper

• White

• Yellow

Uncompensated

• Black: Black Foam Sleeve

• Orange Silicone Eartip

• Green: 3-Flange Eartip

Uncompensated

• Black: 3.2 mm

• Orange: 6.2 mm

Green: 7.2 mm

away from the reference plane

Uncompensated

• Shure SE530

• Orange: Shure SCL5

Harman Target Compensated

EQ recommandation - Parametric Equalizer

EasyQ Equalizer

Frequency: 286 Hz

Gain: -8 dB

Bandwidth: 4.48 oct.
