SONY MH755 (IEM)

Measurements

SONY MH755

• Single dynamic driver
• Bundled with SONY bluetooth receiver
• short cord

SONY MH755 measurements

Check the Measurement Procedures first.


[1. frequency Response ]
Uncompensated


Diffuse Field Target Compensated


Harman Target Compensated


CSD

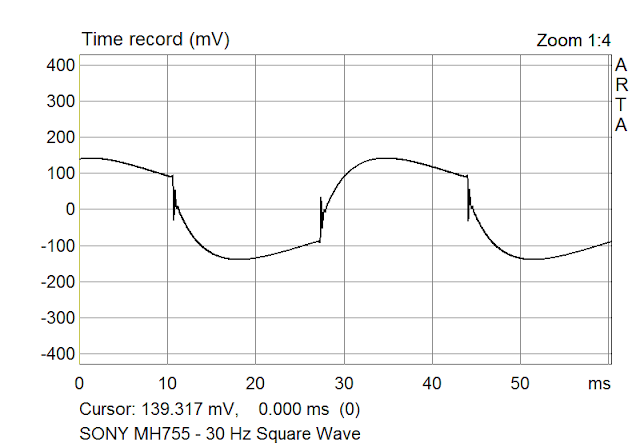

[2. Square Wave ]
300 Hz


30 Hz



[3. Minimum Phase ]


[4. Harmonic Distortions ]
94 dB SPL at 500 Hz



[5. Impedance ]
Black: Impedance Magnitude
Green: Electrical Phase





at

27 comments:

  1. UnknownMarch 13, 2017 at 10:00 PM

    I wonder what makes it measure so differently from other Sony IEMs.

    ReplyDelete
    Replies
    1. SpeakerphoneApril 2, 2017 at 8:26 PM

      Me too. I was so surprised that it sounds quite good.

      Delete
  2. AnonymousMarch 13, 2017 at 10:33 PM

    Looks like MH755 measure better than other Sony's more expensive IEMS :-D

    ReplyDelete
  3. JohnYang1997March 15, 2017 at 8:40 PM

    How funny it is to be the best sony earphones ever measured!

    ReplyDelete
    Replies
    1. SpeakerphoneApril 2, 2017 at 8:33 PM

      It's the best Sony IEM that I have tested so far. Now the only hope is XBA-N3... lol

      Delete
    2. JohnYang1997July 8, 2017 at 10:14 AM

      What about blocking the vent for 755?

      Delete
  4. UnknownMarch 15, 2017 at 9:23 PM

    Are these vented?

    What is the effect on frequency response from sealing the vent?

    ReplyDelete
    Replies
    1. SpeakerphoneApril 2, 2017 at 8:18 PM

      It has vents. I'll try that ASAP.

      Delete
    2. UnknownApril 3, 2017 at 5:41 AM

      Did you get these included with a Sony Bluetooth receiver like the SBH20? The SBH20 does come with a pair of MH755 IEMs.

      I ask because I suspect that the many available cheap MH755 IEMs available are fakes when bought on their own.

      Delete
    3. SpeakerphoneApril 3, 2017 at 11:28 AM

      Nope, I bought it separately. It costs about 6$.

      Delete
    4. UnknownApril 3, 2017 at 6:48 PM

      Can you link to the seller you bought them from.

      https://www.reddit.com/r/headphones/comments/62fv82/sony_mh750755_psa/

      That person thinks they've received a fake one.

      Can you also measure the nozzle diameter if possible please. I'd like to know what Comply series of foam tips fit them.

      Delete
    5. InksApril 4, 2017 at 7:33 AM

      Comply 200

      Delete
  5. AnonymousMarch 17, 2017 at 9:43 AM

    I wonder the Sony MH755 compares with the LG Quadbeat3 tuned by AKG edition.

    ReplyDelete
    Replies
    1. UnknownMarch 17, 2017 at 11:33 AM

      The AKG edition is more mid oriented compared to MH755.

      Delete
    2. AnonymousMarch 18, 2017 at 10:43 PM

      Thanks for the comparison Mark :-)

      Delete
  6. medtxaMarch 20, 2017 at 6:18 PM

    Lol, there's alot of fake of this everywhere. so itt is the same as MH750, how much it cost?

    ReplyDelete
    Replies
    1. NereisMarch 26, 2017 at 5:37 AM

      any advice on getting genuine products?

      Delete
    2. davidtriuneMarch 30, 2017 at 2:56 PM

      best way is probably look at user reviews and seller overall rating.

      Delete
    3. SpeakerphoneApril 2, 2017 at 8:20 PM

      I bought it at online market. About 6$.

      Delete
  7. davidtriuneMarch 30, 2017 at 5:47 AM

    a hidden gem... lol

    ReplyDelete
  8. AnonymousMay 30, 2017 at 3:11 AM

    Reminds me to the Sony MH1: http://headflux.de/wp-content/uploads/2017/05/Sony-MH1-Sample-B-web.png

    ReplyDelete
  9. oluvJanuary 24, 2019 at 7:50 AM

    Did you ever update your measurements with the vent blocked? I blocked mine now, it was too boomy for me, but with the vent blocked it sounds amazing, still quite punchy with bass but not as boomy I am sure it would be even closer to Harman now. Another tip: I use the Final audio E3000 tips for it which smoothens our treble even more, with the original stock tips treble is a bit too harsh for me. For 6$ a no brainer!

    ReplyDelete
    Replies
    1. SihanMarch 13, 2020 at 1:51 AM

      Are u oluv of oluv's gadget?

      Delete
    2. SpeakerphoneMarch 14, 2020 at 4:13 AM

      Sorry for the late reply, Oluv.
      https://clarityfidelity.blogspot.com/2020/02/sony-mh750-iem.html
      ↑ Check here for measurements with the vent blocked. As you mentioned, bass reduced a bit.

      Delete
  10. AnonymousMay 30, 2020 at 11:50 AM

    How about MDR-EX155 some said it sounds like MH755 too

    ReplyDelete
