TSST (Toshiba-Samsung Storage Technology) EARNiNE EN2

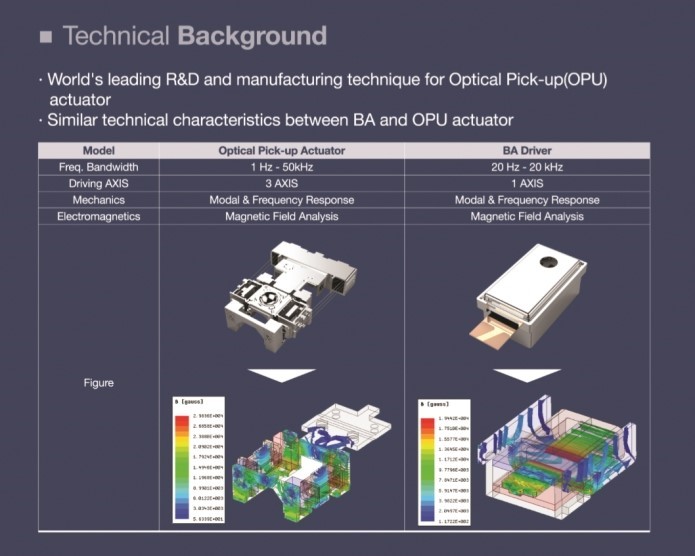

TSST(Toshiba Samsung Storage Technology), the company that has manufacturing techniques for OPU actuator, released the balanced armature called WBA(Wide Balanced Armature).
• Dual BA (TSST Custom-built, called WBA)
• Detachable MMCX cable
• 189000 KRW ($160 USD) [MSRP]
TSST EARNiNE EN2 measurement
Check the Measurement Procedures first.
[1. Frequency Response ]
Uncompensated
Diffuse Field Target Compensated
Harman Target Compensated
CSD
[2. Square Wave ]
30 Hz
300 Hz
[3. Minimum Phase ]
[4. Harmonic Distortions ]
94 dB SPL @ 500 Hz
[5. Impedance ]
Black: Impedance Magnitude
Green: Electrical Phase
[6. Resistors added ]
Uncompensated
Black: 0
Pink: 4
Orange: 10
Yellow: 30
Green: 90
Ohms resistor added
Diffuse Field Target Compensated
Gray: 0 ohm
Black: 4 ohms added
Diffuse Field Target Compensated
Gray: 0
Black: 10
Pink: 30
Ohms added
[7. Insertion Depth ]
Uncompensated
Orange: 5 mm
Black: 6 (General)
Green: 7 mm
Away from the reference plane
[8. Stock Foam Tip ]
Uncompensated
Gray: Stock Silicone Eartip
Black: Stock Foam Tip
Diffuse Field Target Compensated
Gray: Stock Silicone Eartip
Black: Stock Foam Tip
Diffuse Field Target Compensated
Black: TSST EARNiNE EN1
Orange: TSST EARNiNE EN2
It is painful to see such performance on such a beautifully designed lovely item....But I guess the upper mid range peak is actually not very bothersome. Greak work as always!
ReplyDeleteHuge Peak at 2.6kHz bothers me lol
DeleteWhat happens when you stuff some earbud foam into the nozzle while increasing the source impedance? I suspect a foam plug could tame some of those peaks by damping some of those resonances.
ReplyDeleteYes, looks like adding a piece of earbud foam affects the upper mids especially over 5 khz, but this foam couldn't reduce a peak @ 2.7kHz which is the main problem of these IEMs.
