AKG N20 (IEM)

Measurements

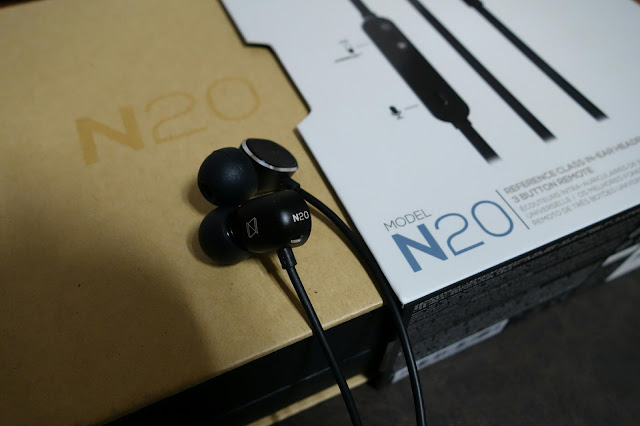

AKG N20

• 7 mm dynamic driver

• Remote Controller for iOS and Android

AKG N20 measurement

Check the Measurement Procedures first.

[1. Frequency Response ]

Uncompensated

Diffuse Field Target Compensated

Harman Target Compensated

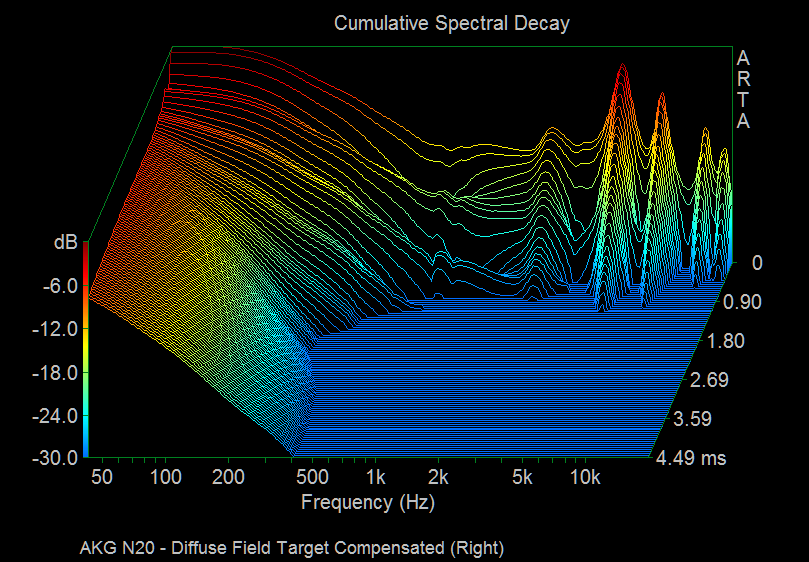

CSD

[2. Square Wave ]

30 Hz

300 Hz

[3. Minimum Phase ]

[4. harmonic Distortions ]

94 dB SPL @ 500 Hz

[5. Impedance ]

Black: Impedance Magnitude

Green: Electrical Phase

[6. Insertion Depth ]

Uncompensated

• Black: 5.5 (General)

• Orange: 3.5 mm

Away from the reference plane

[7. Back vent blocked ]

Uncompensated

Black: General

Orange: Back vent blocked

[8. Various Eartips ]

Uncompensated

Black: Stock Silicone Eartip

Orange: Comply™ Foam Tip T-500

Diffuse Field Target Compensated

Black: Stock Silicone Eartip

Orange: Comply™ Foam Tip T-500

[9. Comparison ]

Uncompensated

Black: AKG N20

Orange: RHA T20

Uncompensated

Black: AKG N20

Orange: Ultimate Ears UE100

Diffuse Field Target Compensated

Black: AKG N20

Orange: Ultimate Ears UE100

Uncompensated

Black: AKG N20

Orange: Dynamic Motion DM100E

Diffuse Field Target Compensated

Black: AKG N20

Orange: Dynamic Motion DM100E
