Klipsch X20i (IEM)

Measurement

Klipsch X20i

• Dual BA (Sonion)

• Detachable cable (connector situated at middle of the cord)

• remote controller for iOS

Klipsch X20i measurement

Check the Measurement Procedures first.

[1. Frequency Response ]

Uncompensated

Diffuse Field Target Compensated

Harman Target Compensated

CSD

[2. Square Wave ]

30 Hz

300 Hz

[3. Minimum Phase ]

[4. Harmonic Distortions ]

94 dB SPL @ 500 Hz

[5. Impedance ]

• Black: Impedance Magnitude

• Green: Electrical Phase

[6. Resistor added ]

Uncompensated

• Black: 0

 • Orange: 4

 • Green: 30

• Pink: 90

Ohms resistor added

Harman Target Compensated

• Gray: 0 ohm

 • Black: 30 ohms

Resistor added

Diffuse Field Target Compensated

• Gray: 0 ohm

 • Black: 90 ohms

Resistor added

[7. Stock Eartips ]

Uncompensated

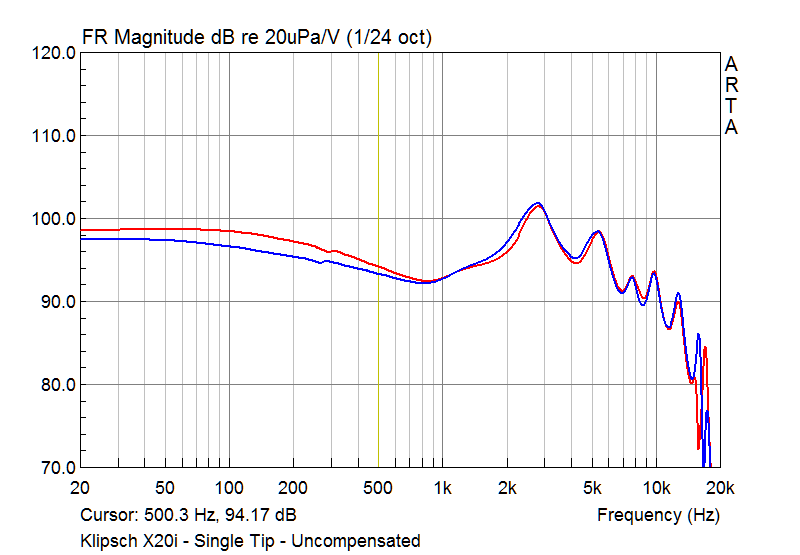

• Stock Single Tip

Uncompensated

• Stock Double Tip

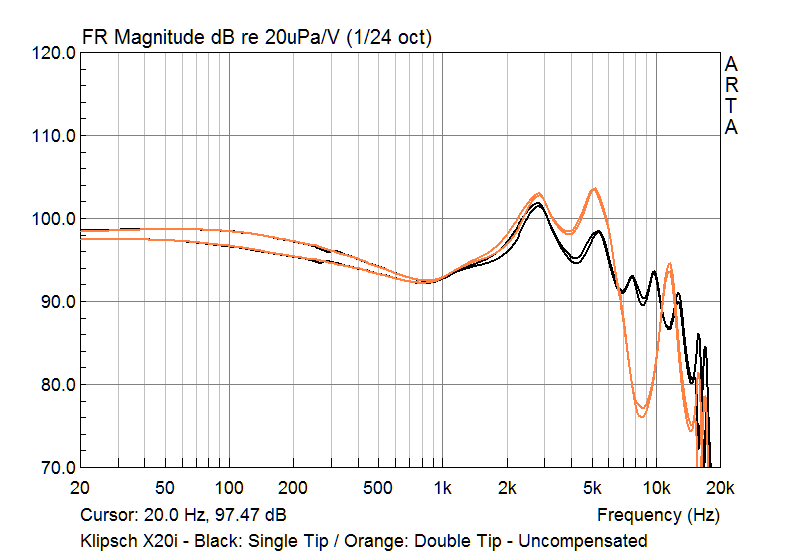

Uncompensated

• Black: Single Tip

 • Orange: Double Tip

[8. Insertion Depth ]

Uncompensated

 • Black: 5 (General)

• Orange: 3 mm

Away from the reference plane

[9. Comparison ]

Uncompensated

• Black: Klipsch X20i

 • Orange: Earmax ER600

Diffuse Field Target Compensated

• Black: Klipsch X20i

 • Orange: Earmax ER600

Diffuse Field Target Compensated

• Black: Klipsch X20i

 • Orange: TSST EARNiNE EN1
