Audio-Technica ATH - IM02
• Dual BA
• Detachable Cable
• Adopted the horn-shaped conductor pipe, 'Acoustic Horn', that reduces acoustic radiation resistance
Audio-Technica ATH-IM02 measurement
[1. Frequency Response ]
Check my Measurement Procedures first.
Uncompensated
Diffuse Field Target Compensated
Olive Welti Target Compensated
CSD - Olive Welti Target Compensated
[2. Square Wave ]
300Hz
30Hz
[3. Minimum Phase ]
[4. Harmonic Distortions ]
94 dB SPL @500Hz
[5. Impedance ]

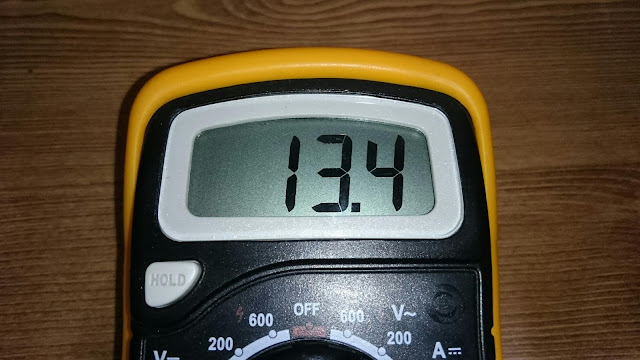

DC ohm
Black: Impedance Magnitude
Green: Electrical Phase
[6. Resistor Added ]
Uncompensated
Black: 0
Green: 10
Orange: 50
Pink: 150
Ohm resistor added
Differences
Red(Flat): 0
Green: 10
Orange: 50
Pink: 150
Ohm resistor added
Diffuse Field Target Compensated
Pink: 10
Green: 50
Ohm resistor added
[7. Insertion Depth ]
Uncompensated
Green: 3.8 mm
Black: 5.8 mm (General depth)
Red: 7.5 mm
Away from the reference plane
[8. Various Silicon Sleeves ]
Uncompensated
Black: Stock Silicone EarTip
Orange: Sony EarTip
Uncompensated
Black: Stock Silicone EarTip
Orange: Nobunaga Double Tip
[9. Comply™ Foam Tips ]
Uncompensated
Black: Stock Silicone EarTip
Green: Comply Foam Tip T-500
Orange: Comply Foam Tip TS-500
Uncompensated (1kHz~20kHz)
Black: Stock Silicone EarTip
Green: Comply Foam Tip T-500
Orange: Comply Foam Tip TS-500

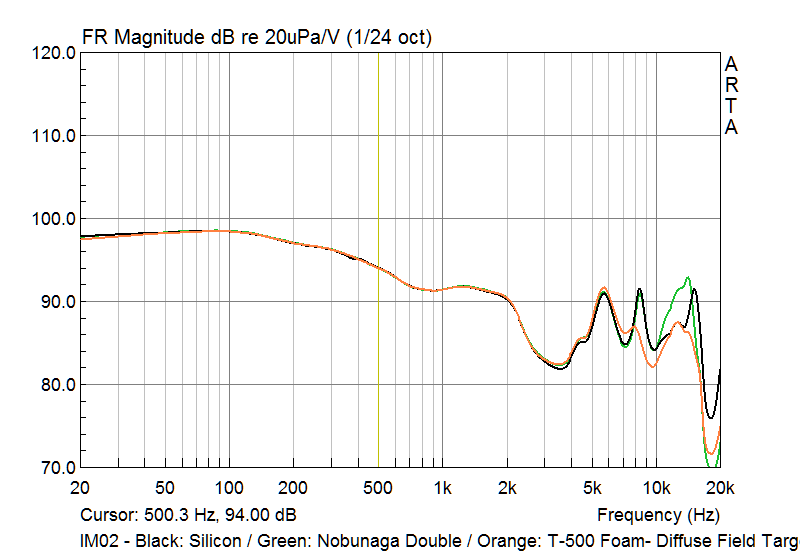

Diffuse Field Target Compensated
Black: Stock Silicone EarTip
Green: Nobunaga Double Tip
Orange: Comply Foam Tip T-500
